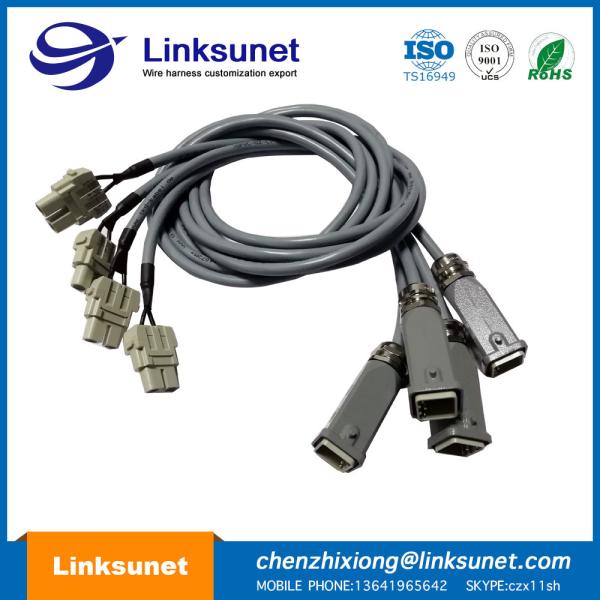

40A Four Point Crimping Industrial Wire harness Harting Modula
2PConnector 09140022701 Add 09120123001

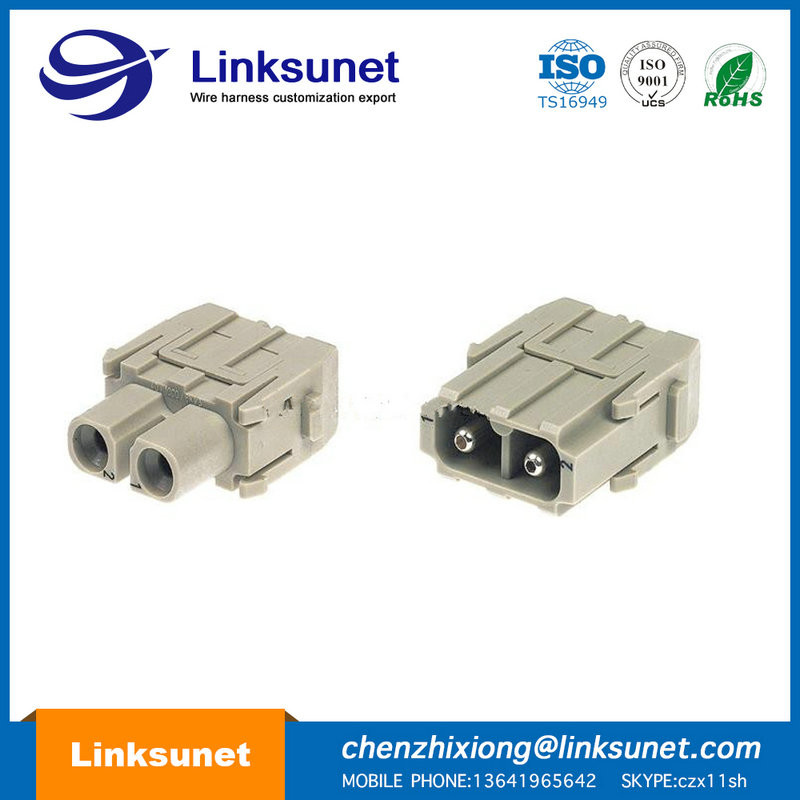

Connector : 09140022701
Connector hood :19200031443

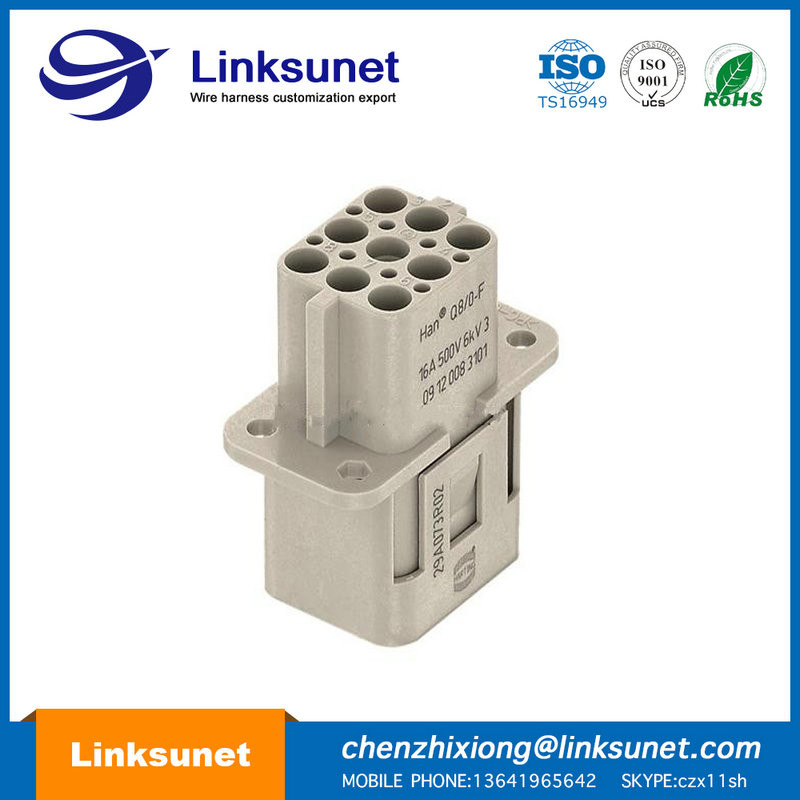

Connector:09120123001
Termial : 09150006106
Gland : M20
Cable : TKDKABLE 2G2.5
Application situation:Robots, Control machines, Locomotives
Documents & Media
| Datasheets | 09140022701 Drawing |
|---|
| Featured Product | Han - Modular ® Connector System |
|---|
| Online Catalog | Han - Modular ® Series |
|---|
| Product Attributes | Select All |
| Categories | Connectors , Interconnects |
|---|
| Heavy Duty Connectors - Inserts , Modules |
| Manufacturer | HARTING |
|---|
| Series | Han-Modular ® |
|---|
| Packaging | Bulk |
|---|
| Part Status | Active |
|---|
| Connector Type | Module |
|---|
| Gender | Female |
|---|
| Number of Positions | 2 |
|---|
| Size | - |
|---|
| Termination Style | Screw |
|---|
| Voltage Rating | 600V |
|---|
| Current Rating | 40A |
|---|
| Contact Type | - |
|---|
| Operating Temperature | - 40 °C ~ 125 °C |
|---|
| Color | Gray |
|---|
| Housing Material | Polycarbonate ( PC ) |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Silver |
|---|
| Material Flammability Rating | UL94 V - 0 |
|---|
Documents & Media
| Datasheets | 19200031443 Drawing Overview ( Sample : Han - Brid ® Cu ) |
|---|
| Mfg CAD Models | 19200031443 . stp |
|---|
| Online Catalog | Han® A Series |
|---|
| Product Attributes | Select All |
| Categories | Connectors , Interconnects |
|---|
| Heavy Duty Connectors - Housings , Hoods , Bases |
| Manufacturer | HARTING |
|---|
| Series | Han ® A |
|---|
| Packaging | Bulk |
|---|
| Part Status | Active |
|---|
| Connector Type | Hood |
|---|
| Style | Top Entry |
|---|
| Size | 3A |
|---|
| Lock Location | Locking Clip ( 1 ) on Base Bottom |
|---|
| Thread Size | M20 |
|---|
| Size / Dimension | 1.063 " L x 1.102 " W x 2.362 " H ( 27.00mm x 28.00mm x 60.00mm ) |
|---|
| Housing Color | - |
|---|
| Features | - |
|---|
| Ingress Protection | IP44 |
|---|
| Housing Material | Zinc , Die Cast |
|---|
| Housing Finish | Powder Coated |
|---|
| Operating Temperature | - 40 °C ~ 125 °C |
|---|
Documents & Media
| Datasheets | 09120123001 Drawing |
|---|
| Featured Product | Han - Modular ® Connector System |
|---|
| Online Catalog | Han ® Q Series |
|---|
| Product Attributes | Select All |
| Categories | Connectors , Interconnects |
|---|
| Heavy Duty Connectors - Inserts , Modules |
| Manufacturer | HARTING |
|---|
| Series | Han ® Q |
|---|
| Packaging | Bulk |
|---|
| Part Status | Active |
|---|
| Connector Type | Insert without Contacts |
|---|
| Gender | Male |
|---|
| Number of Positions | 12 |
|---|
| Size | 3A |
|---|
| Termination Style | Crimp , Push In with Lock |
|---|
| Voltage Rating | 600V |
|---|
| Current Rating | 10A |
|---|
| Contact Type | Han ® D |
|---|
| Operating Temperature | - 40 °C ~ 125 °C |
|---|
| Color | Gray |
|---|
| Housing Material | Polycarbonate ( PC ) |
|---|
| Contact Material | - |
|---|
| Contact Finish | - |
|---|
| Material Flammability Rating | UL94 V - 0 |
|---|
Q1: What's your guarantee?
Q2: What's your delivery time ?
A: The delivery time is 10 working days. The specific delivery time
depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 10 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order.
But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard:
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire
Harness Assemblies )
We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on ,
please let us know
