0035141 / 3G , 2G , 0.14 PVC Wire And Cable

Ask Lasest Price
Brand Name :	GROUP
Model Number :	0035141
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, MoneyGram, Western Union
Supply Ability :	50000SET/D
Delivery Time :	3-15D

Add to Cart

Product Details
Company Profile

0035141 / 3G , 2G , 0.14 PVC Wire And Cable

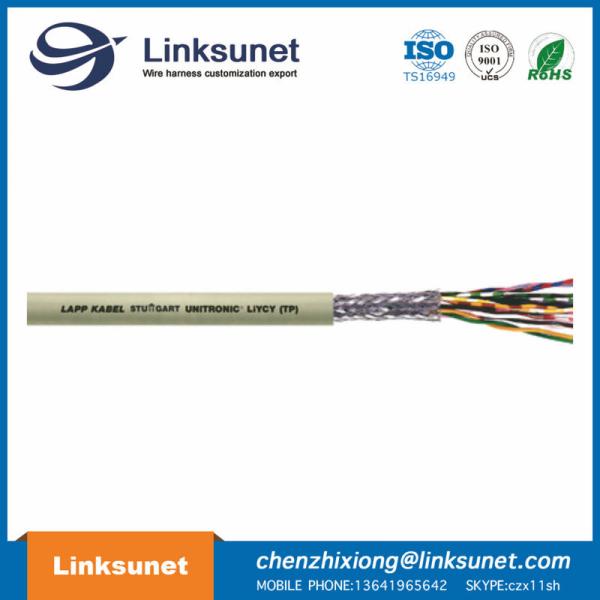

GROUP UNITRONIC LiYCY ( TP ) : Screened data transmission cable / 0035141 / 3G , 2G , 0.14 / Material PVC

UNITRONIC® LiYCY (TP ) : Low-frequency PVC data cable, DIN 47100 coded, 0.34² Maxi TERMI-POINT®, Twisted pairs, Flame retardant, Screened, Instrumentation Control

Benefits

Decoupling of circuits by means of

twisted - pair (TP ) design (crosstalk effects )

Overall braid minimises electrical

interference

Application range

Can be used multifunctional in electronics of computer systems , electronic control equipment , office machines , balances , etc .

Dry or damp rooms

Product features

Good protection against capacitive interference from electric fields (e . g . power cable )

Flame - retardant according IEC 60332 - 1 - 2

Norm references / Approvals

Based on VDE 0812

Product Make - up

Fine - wire strand made of bare copper wires

Core insulation made of PVC

TP structure

Tinned - copper braiding

Outer sheath made of PVC

Outer sheath colour : pebble grey (RAL 7032 )

Technical Data

Classification

ETIM 5 . 0 Class - ID : EC000104

ETIM 5 . 0 Class - Description : Control cable

Core identification code

DIN 47100, refer to Appendix T9

Mutual capacitance

C / C : approx . 120 nF / km

C / S : approx . 160 nF / km

Peak operating voltage

(not for power applications)

at 0 . 14 mm ² : 350 V

at ≥ 0 . 25 mm ² : 500 V

Inductivity

approx . 0 . 65 mH / km

Conductor stranding

Fine copper wire strands

Minimum bending radius

Occasional flexing : 15 x outer diameter

Fixed installation : 6 x outer diameter

Test voltage

At 0 . 14 mm ² : 1200 V

Temperature range

Occasional flexing : - 5 °C to + 70 °C

Fixed installation : - 40 °C to + 80 °C

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
