JST Automotive Terminal Harness FVWS1.25 - 3 4510002 Ring Crimp Terminals

Ask Lasest Price
Brand Name :	JST+kable
Model Number :	FVWS1.25-3 +4510002
Certification :	UL/CAS/ROHS/RECHA/ISO9001/TS16949/IPC/WHMA-A-620
Price :	Negotiable
Payment Terms :	Western Union, MoneyGram
Supply Ability :	100000PCS/D

Add to Cart

Product Details
Company Profile

JST Automotive Terminal Harness FVWS1.25 - 3 4510002 Ring Crimp Terminals

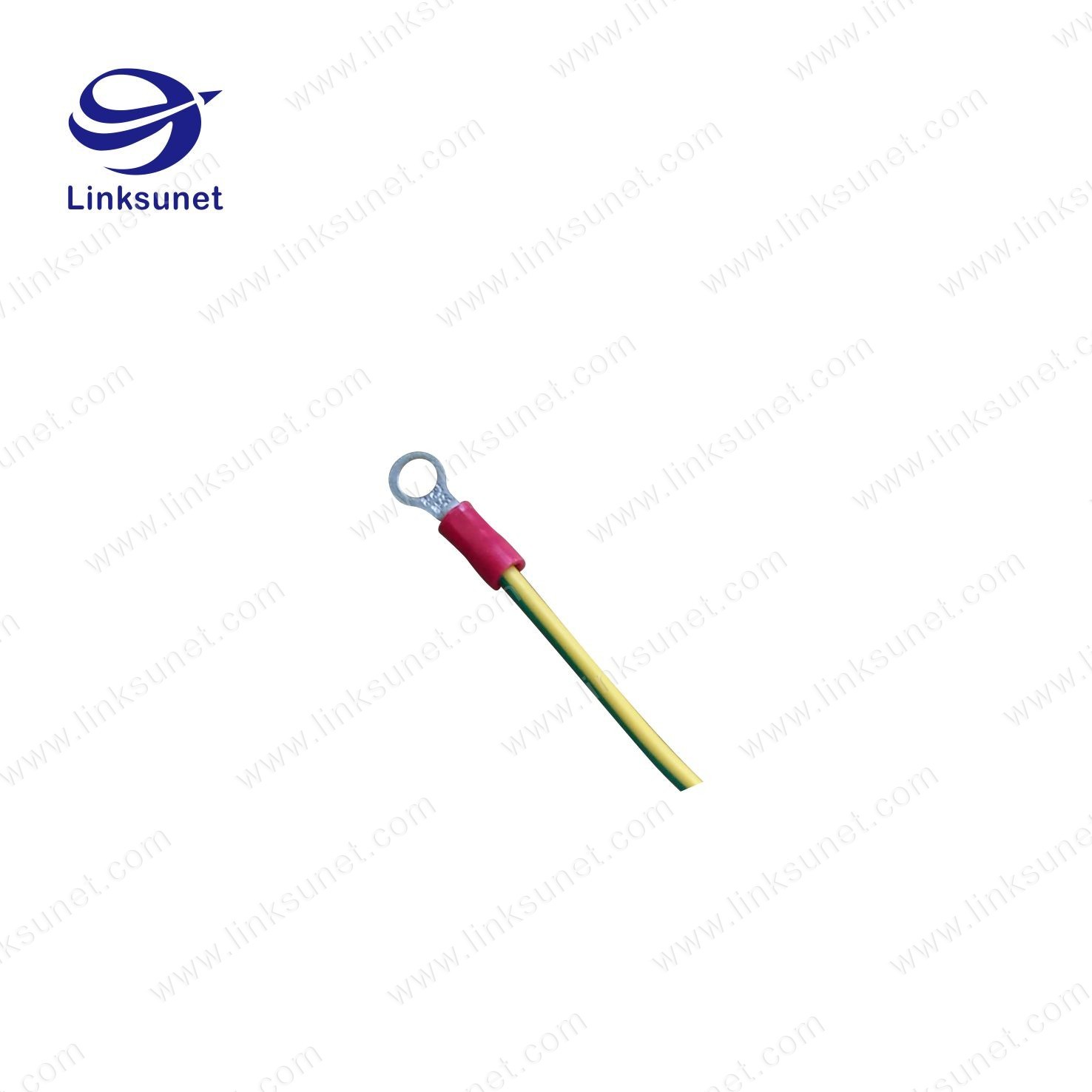

JST Automotive Termial harness FVWS1.25 - 3 and 4510002 GREEN/YE PVC Cable Custom processing

Applicable Wire AWG#(mm2)	Stud size		Part No.		Dimen sions mm (in.)							Color	Tool No.	Qty / box
	Amer ican	Metric	JST	JIS	0 d2	B	L	F	Z	0 D	T
26 to 22 (0.2 to 0.5)	1 - 2	2	FV 0.5 - 2		2.2 (.087 )	5.2 ( .205 )	16.4 ( .646 )	5.8 ( .228 )	8.0 ( .315 )	2.9 ( .114 )	0.5 ( .020 )	Yellow	YNT - 2622 YA - 1 YA - 2 BCT - 0514	1,000
	3 - 4	3	FV 0.5 - 3		3.2 (.126 )	5.2 ( .205 )	16.4 ( .646 )	5.8 ( .228 )
	5 - 6	3.5	FV 0.5 - 3.7		3.7 (.146 )	6.6 ( .260 )	19.0 ( .748 )	7.7 ( .303 )
	8	4	FV 0.5-4		4.3 (.169 )	6.6 ( .260 )	19.0 ( .748 )	7.7 ( .303 )
	10	5	FV 0.5-5		5.3 (.209)	8.0 (.315)	19.0 (.748)	7.0 ( .276 )
22 to 16 *(0.25 to 1.65)	1 - 2	2	FV 1.25-2		2.2 (.087)	5.5 (.217)	15.7 ( .618 )	4.0 ( .157 )	9.0 ( .354 )	4.0 ( .157 )	0.8 ( .031 )	Red	YNT - 2216 YA - 1 YA - 2 YA - 4 BCT - 0514	1,000
	3 - 4	3	FV 1.25-3	RBV 1.25-3	3.2 (.126)	5.5 (.217)	15.7 (.618)	4.0 (.157)
	3 - 4	3	FV 1.25-MS3		3.2 (.126)	5.5 (.217)	17.4 (.685)	5.6 (.220)
	3 - 4	3	FV 1.25-L3		3.2 (.126)	8.0 (.315)	20.0 (.787)	7.0 (.276)
	5 - 6	3.5	FV 1.25-3.7		3.7 (.146)	5.5 (.217)	15.7 (.618)	4.0 (.157)
	5 - 6	3.5	FV 1.25-M3	RBV 1.25-3.5	3.7 (.146)	6.6 (.260)	18.6 (.732)	6.3 (.248)
	8	4	FV 1.25-M4		4.3 (.169)	6.6 (.260)	18.6 (.732)	6.3 (.248)
	8	4	FV 1.25-4	RBV 1.25-4	4.3 (.169)	8.0 (.315)	20.0 (.787)	7.0 (.276)
	10	5	FV 1.25-5	RBV 1.25-5	5.3 (.209)	8.0 (.315)	20.0 (.787)	7.0 (.276)
	1 / 4	6	FV 1.25-6		6.4 (.252)	11.6 (.457)	25.9 (1.020)	11.1 (.437)
	5 / 16	8	FV 1.25-8		8.4 (.331)	11.6 (.457)	25.9 (1.020)	11.1 (.437)
	3 / 8	10	FV 1.25-10		10.5 (.413)	13.6 (.535)	29.7 (1.169)	13.9 (.547)
16 to 14 (1.04 to 2.63)	1 - 2	2	FV2-S2		2.2 (.087)	6.4 (.252)	16.5 (.650)	4.3 (.169)	9.0 (.354)	4.5 (.177)	0.8 (.031)	Blue	YNT-1614 YA-1 YA-2 YA-4 BCT-0514	1,000
	3 - 4	3	FV2-MS3		3.2 (.126)	5.5 (.217)	17.4 (.685)	5.6 (.220)
	3 - 4	3	FV2-S3.3		3.2 (.126)	6.4 (.252)	16.5 (.650)	4.3 (.169)
	3 - 4	3	FV2-3		3.2 (.126)	8.5 (.335)	21.0 (.827)	7.8 (.307)
	5 - 6	3.5	FV2-S3		3.7 (.146)	6.4 (.252)	16.5 (.650)	4.3 (.169)
	5 - 6	3.5	FV2-M3	RBV 2-3.5	3.7 (.146)	6.6 (.260)	18.6 (.732)	6.3 (.248)
	5 - 6	3.5	FV2-P3.5		3.7 (.146)	7.0 (.276)	20.2 (.780)	7.7 (.303)
	8	4	FV2-M4		4.3 (.169)	6.6 (.260)	18.6 (.732)	6.3 (.248)
	8	4	FV2-P4		4.3 (.169)	7.0 (.276)	20.2 (.800)	7.7 (.303)
	8	4	FV2-4	RBV 2-4	4.3 (.169)	8.5 (.335)	21.0 (.827)	7.8 (.307)
	10	5	FV2-M5		5.3 (.209)	8.5 (.335)	21.0 (.827)	7.8 (.307)
	10	5	FV2-5	RBV 2-5	5.3 (.209)	9.5 (.374)	21.0 (.827)	7.3 (.287)
	1 / 4	6	FV2-6	RBV 2-6	6.4 (.252)	12.0 (.472)	26.0 (1.024)	11.0 (.433)
	5 / 16	8	FV2-8	RBV 2-8	8.4 (.331)	12.0 (.472)	26.0 (1.024)	11.0 (.433)
	3 / 8	10	FV2-10		10.5 (.413)	13.6 (.535)	29.7 (1.169)	13.9 (.547)
	1 / 2	12	FV2-12		13.0 (.512)	19.0 (.748)	35.2 (1.386)	16.7 (.657)						500
	1 / 2	14	FV2-14		15.0 (.591)	27.0 (1.063)	43.7 (1.720)	21.2 (.835)						250
	5 / 8	16	FV2-16		17.0 (.669)	27.0 (1.063)	43.7 (1.720)	21.2 (.835)
	3 / 4	20	FV2-20		21.0 (.827)	27.0 (1.063)	43.7 (1.720)	21.2 (.835)
12 to 10 (2.63 to 6.64)	3 - 4	3	FV5.5-S3.3		3.2 (.126)	7.2 (.283)	23.0 (.906)	5.9 (.232)	13.5 (.531)	6.8 (.268)	1.0 (.039)	Yellow	YNT-1210S YA-4 BCT-0514	500
	3 - 4	3	FV5.5-3		3.2 (.126)	9.5 (.374)	26.5 (1.403)	8.3 (.327)
	5 - 6	3.5	FV5.5-S3		3.7 (.146)	7.2 (.283)	23.0 (.906)	5.9 (.232)
	8	4	FV5.5-S4		4.3 (.169)	7.2 (.283)	23.0 (.906)	5.9 (.232)
	8	4	FV5.5-4	RBV 5.5-4	4.3 (.169)	9.5 (.374)	26.5 (1.043)	8.3 (.327)
	10	5	FV5.5-5	RBV 5.5-5	5.3 (.209)	9.5 (.374)	26.5 (1.043)	8.3 (.327)
	10	5	FV5.5-S5		5.3 (.209)	13.2 (.520)	29.1 (1.146)	9.0 (.354)
	1 / 4	6	FV5.5-6	RBV 5.5-6	6.4 (.252)	12.0 (.472)	32.5 (1.280)	13.0 (.512)
	1 / 4	6	FV5.5-S6		6.4 (.252)	13.2 (.520)	29.1 (1.146)	9.0 (.354)
	5 / 16	8	FV5.5-S8		8.4 (.331)	13.2 (.520)	29.1 (1.146)	9.0 (.354)
	5 / 16	8	FV5.5-8	RBV 5.5-8	8.4 (.331)	15.0 (.591)	34.7 (1.366)	13.7 (.539)
	3 / 8	10	FV5.5-10	RBV 5.5-10	10.5 (.413)	15.0 (.591)	34.7 (1.366)	13.7 (.539)						250
	1 / 2	12	FV5.5-12		13.0 (.512)	19.2 (.756)	39.1 (1.539)	16.0 (.630)
	1 / 2	14	FV5.5-14		15.0 (.591)	32.0 (1.260)	54.8 (2.157)	25.3 (.996)
	5 / 8	16	FV5.5-16		17.0 (.669)	32.0 (1.260)	54.8 (2.157)	25.3 (.996)
	11 / 16	18	FV5.5-18		19.0 (.748)	32.0 (1.260)	54.8 (2.157)	25.3 (.996)
	3 / 4	20	FV5.5-20		21.0 (.827)	32.0 (1.260)	54.8 (2.157)	25.3 (.996)

Manufacturer	KABEL
Wire type	equipment
Wire series	H05V - K
Core structure	stranded
Core type	Cu
Number of cores	1
Core section	0 . 75mm ²
Insulation colour	yellow - green
Outer insulation material	PVC
Rated voltage	300 / 500V
Operating temperature	- 30 . . . 80 °C
Package contents	100m
Cable external diameter	2 . 7mm
Flexibility class	5
Package type	cardboard packaging

The OLFLEX H05V-K series from Kable are European HAR certified, single core harmonized hook up wires. These single core H05V-K flexible non sheathed wires are intended for installation in pipes being on under the plastering as well as in closed installation channels. The HAR marking is of special importance in case of goods traffic between European countries. These wires are comprises with fine wired copper conductor of bare copper strands in line with conductor class 5 acc. IEC 60228. Typical application includes panel and machine wiring for export usage, electronic equipment, wire bundling, MRO replacement or European equipment and machinery.

CPR: Not Yet Qualified
Flame retardant according IEC 60332-1-2 standard
PVC (Polyvinyl chloride) insulation
Nominal voltage is 300V/500V
Temperature range of -40°C to 80°C (fixed installation) and 5°C to 70°C (moving)
Available in popular colour options
Available in 0.5mm², 1mm² and 0.75mm²onductor cross sectional areas
CE approved, HAR

UL standard internal wiring
UL1007 Hook-up Wire
UL1015 Hook-up Wire
UL1061 Hook-up Wire
UL1185 Single Conductor Shielded Cable
UL1316 Reinforced Hook-up Wire
UL1330 FEP Insulated Wire
UL1430 Crosslinked PVC Insulated Wire
UL1452 Reinforced Hook-up Wire
UL1533 Single Conductor Shielded Cable
UL1569 Hook-up Wire
UL1571 Hook-up Wire
UL1672 Reinforced Hook-up Wire
UL10064 FEP Insulated Wire
UL10086 High Temperature Resistant Hook-up Wire
UL10097 Crosslinked PVC Insulated Wire
UL10272 Hook-up Wire
UL10308 High Temperature Resistant Hook-up Wire
UL2464 Multi-Conductor Shielded Cable
UL2468 Flat Ribbon Wire
UL2509 Multi-Conductor Cable
UL2517 Multi-Conductor Shielded Cable
UL2547 Multi-Conductor Shielded Cable
UL2552 Multi-Conductor Shielded Cable
UL2576 Multi-Conductor Cable
UL2586 Multi-Conductor Cable
UL2651 Flat Ribbon Wire
UL2725 Multi-Conductor Shielded Cable
UL2835 Multi-Conductor Shielded Cable
UL2854 Multi-Conductor Shielded Cable
UL2919 Low Voltage Multi-Conductor Shielded Cable
UL20276 Multi-Conductor Shielded Cable
UL20379 Multi-Conductor Shielded Cable
UL21149 Multi-Conductor Shielded Cable
UL21520 Multi-Conductor Cable
UL3443 Hook-up Wire

UL halogen-free wire
UL11027 Hook-up Wire
UL10983 Single Conductor Shielded Cable
UL10982 Hook-up Wire
UL10981 Hook-up Wire
UL10984 Reinforced Hook-up Wire
UL10986 Single Conductor Shielded Cable
UL10987 Hook-up Wire
UL11025 Hook-up Wire
UL11028 Hook-up Wire
UL11029 Hook-up Wire
UL11045 Reinforced Hook-up Wire
UL11047 Reinforced Hook-up Wire
UL21451 Double Shielded Cable
UL21452 Double Shielded Cable
UL21455 Multi-Conductor Shielded Cable
UL21456 Multi-Conductor Shielded Cable
UL21457 Multi-Conductor Shielded Cable
UL21458 Flat Ribbon Wire
UL21461 Multi-Conductor Shielded Cable
UL21474 Multi-Conductor Shielded Cable
UL21476 Multi-Conductor Shielded Cable
UL21515 Flat Ribbon Wire
UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

Industrial electric wire

Flexible Single Core Cable
Flexible Multi-core Torsion Cable
Flexible Multi-core Shielded/Non-Shielded Control Cable

VDE standard wire

LifY Single Core,extra fine wires with highest flexibility
LIYY-Command Cable (Style 2464/300 V, (80°C)
LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

Automotive wire

FLRY-A Automotive Wire Series
FLRY-B Automotive Wire Series
FLRYW Automotive Wire Series

TWP Automotive Wire Series
TXL Automotive Wire Series
GXL Automotive Wire Series
AVS Automotive Wire Series
AVSS Automotive Wire Series

Packaging & Shipping

Export cartons
(406mm*306mm*250mm)
