Hirschmann CA3LS 4 PIN Circular Connector Wire Assembly PVC LIYCY 4C 0.25

Ask Lasest Price
Brand Name :	HIRSCHMANN
Model Number :	934124100
Certification :	UL/CAS/ROHS/RECHA/ISO9001/TS16949/IPC/WHMA-A-620
Price :	Negotiable
Payment Terms :	Western Union, MoneyGram
Supply Ability :	100000PCS/D

Add to Cart

Product Details
Company Profile

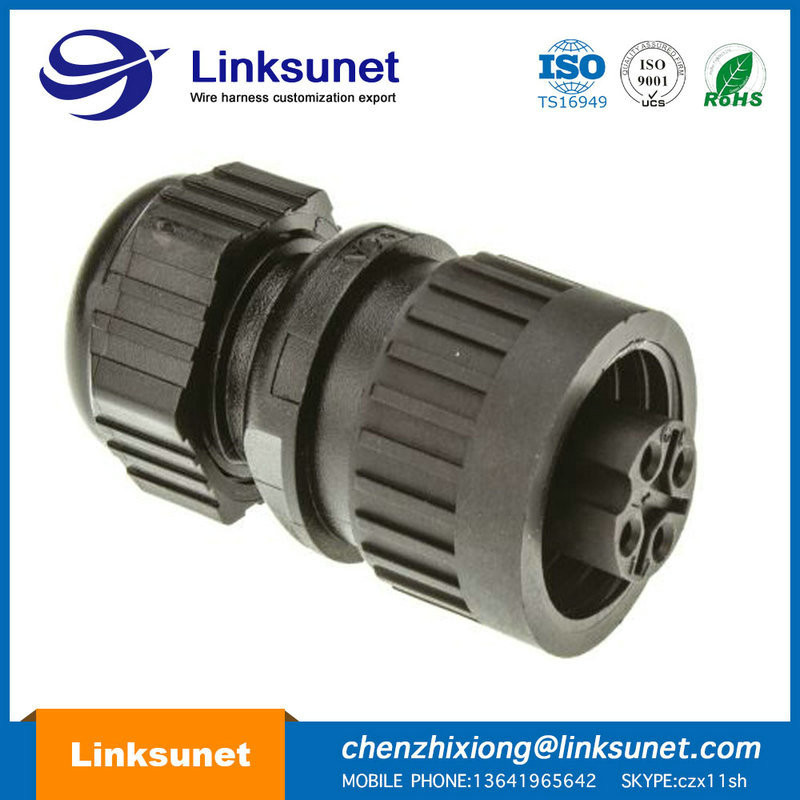

Hirschmann CA3LS 4 PIN Circular Connector Wire Assembly PVC LIYCY 4C 0.25

HIRSCHMANN CA3LS Circular Connector Cable Assembly Add LIYCY 4C 0 . 25 PVC Cable Custom processing

Manufacturer	HIRSCHMANN
Connector type	circular
Operating temperature	- 40. . .90 °C
IP rating	IP67
Connector series	CA
Locking system	threaded joint , external thread
Connector	plug
Connector type	male
Rated voltage	400V
Operating current	16A
Type of pin configuration	3 + PE
Wire cross section	1.5mm2
Electrical mounting	screw terminal
Mechanical mounting	for cable
Cable external diameter	6. . .12mm

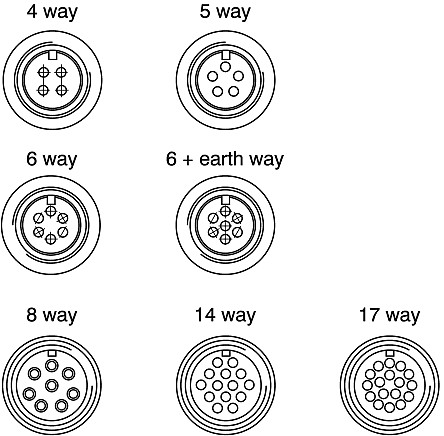

Number of pins	4 ( 3 + 1 )
Spatial orientation	straight

Hirschmann CA3LS 4 PIN Circular Connector Wire Assembly PVC LIYCY 4C 0.25

Flammability Rating	UL94V1
Contacts	Silver plated copper alloy
Temperature Rating	- 40 → 90 °C

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.

Q2: What's your delivery time ?
A: The delivery time is 2-15 working days. The specific delivery time depends on the items and the quantity of your order.

Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 200 pcs.

Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6.Production standard:

A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )

Application: internal wiring of machines

Documents & MediaWe can provide the service.

1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Hirschmann CA3LS 4 PIN Circular Connector Wire Assembly PVC LIYCY 4C 0.25

HIRSCHMANN 934124100

Hirschmann CA3LS 4 PIN Circular Connector Wire Assembly PVC LIYCY 4C 0.25

HIRSCHMANN 934125100

Hirschmann CA3LS 4 PIN Circular Connector Wire Assembly PVC LIYCY 4C 0.25

HIRSCHMANN 932321100

HIRSCHMANN 932322100

HIRSCHMANN 831532400
