Extensively Oil Resistant Cable Helukable Super Tronic - PVC 7G , 0.25mm2 GY 49565

Ask Lasest Price
Brand Name :	HELUKABLE
Model Number :	49565
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, MoneyGram, Western Union
Supply Ability :	50000SET/D
Delivery Time :	3-15D

Add to Cart

Product Details
Company Profile

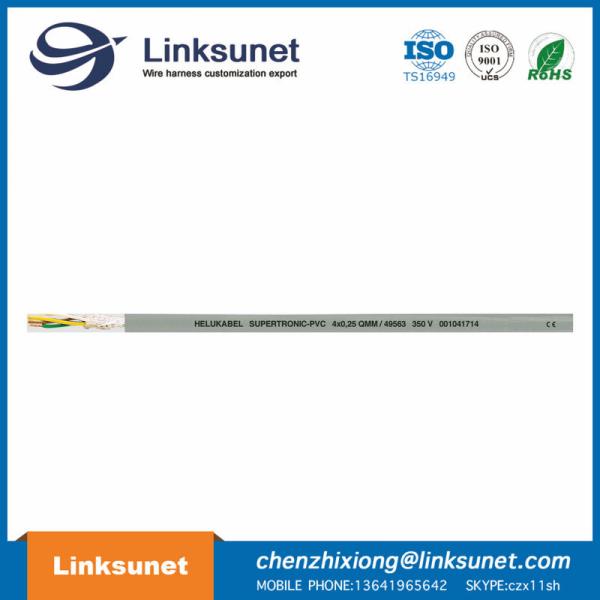

Extensively Oil Resistant Cable Helukable Super Tronic - PVC 7G , 0.25mm2 GY 49565

HELUKABLE SUPERTRONIC - PVC 7 x 0 , 25 mm ² GY Part no . 49565

Technical Data

Special PVC cable for drag chains , adapted to

DIN VDE 0285 - 525 - 1 / DIN EN 50525 - 1

Very high flexible due to special construction

Temperature range

flexing - 5 °C to + 70 °C

fixed installation - 40 °C to + 70 °C

Nominal voltage 350 V

Test voltage 1500 V

Breakdown voltage min . 3000 V

Insulation resistance

min . 20 MOhm x km

Minimum bending radius

flexing 5x cable Ø

fixed installation 3 x cable Ø

Radiation resistance

up to 80 x 106 cJ / kg ( up to 80 Mrad )

Cable Structure

Bare copper , extra fine wire conductors , to

DIN VDE 0295 cl . 6

Core insulation of special PVC

compound type TI2 to

DIN VDE 0207 - 363 - 3 / DIN EN 50363 - 3

Cores colour coded to DIN 47100 , see

Technical Informations

Cores stranded in layers with optimal selected

lay length

Core wrapping with textile tape

Outer sheath of special PVC

compound type TM2 to

DIN VDE 0207 - 363 - 4 - 1 / DIN EN 50363 - 4 - 1

Colour grey ( RAL 7001 )

With meter marking

Properties

Extensively oil resistant

Chemical Resistance - see table Technical

Informations

Adhesion - low

The materials used during manufacturing

are cadmium - free , contain no silicone

and are free from substances harmful

to the wetting properties of lacquers

Tests

PVC self - extinguishing and flame retardant

acc . to DIN VDE 0482 - 332 - 1 - 2 ,

DIN EN 60332 - 1 - 2 , IEC 60332 - 1

( equivalent DIN VDE 0472 part 804 test method B )

Application

The ideal cable for use in cable trays .

This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries , robotics and all areas of highly mobile machine parts .

The long working life offers a secure performance as well as economy . For applications which go beyond standard solutions ( for example for composting appliances or high shelf conveyors with extremely high processing speeds etc . )

we recommend for our especially developed enquiry sheet for energy guiding systems . Before installation in cable trays please read the instructions . Further technical details see selection table for drag chain cables , see lead text .

CE = Product conforms with Low - Voltage Directive 2014 / 35 / EU .

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
