MOLEX Male Female Wire Connectors 43025 - 2400 Micro Fit 3.0 Connectors

Ask Lasest Price
Brand Name :	MOLEX
Model Number :	43025-2400
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, MoneyGram, Western Union
Supply Ability :	50000SET/D
Delivery Time :	3-15D

Add to Cart

Product Details
Company Profile

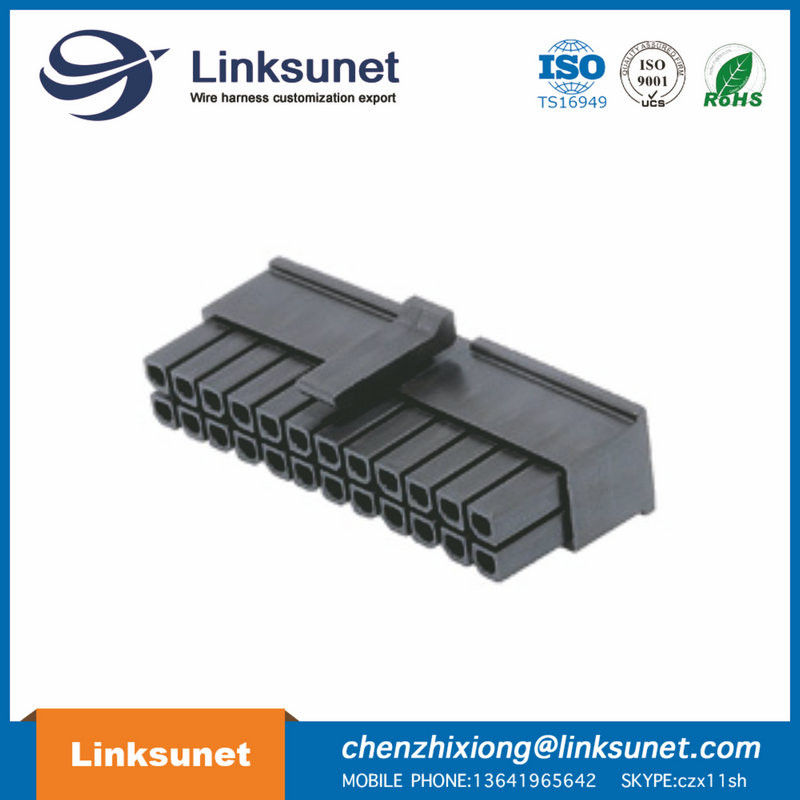

MOLEX Male Female Wire Connectors 43025 - 2400 Micro Fit 3.0 Connectors

Part Number: 43025-2400

Micro-Fit 3.0™ Receptacle Housing, Dual Row, 24 Circuits, UL 94V-0, Black

Click for larger imageSeries image - Reference only

Status:Active

Series:43025

Category:Crimp Housings

Overview:Micro-Fit 3.0 Connector System Product Family

Part Detail

General

Status	Active
Category	Crimp Housings
Series	43025
Application	Power , Wire - to - Board , Wire - to - Wire
Overview	Micro - Fit 3.0 Connector System Product Family
Product Literature Order No	987650 - 5984
Product Name	Micro - Fit 3.0™
UPC	800753683655

Physical

Circuits ( maximum )	24
Color - Resin	Black
Flammability	94V - 0
Gender	Receptacle
Glow-Wire Compliant	No
Keying to Mating Part	None
Lock to Mating Part	Yes
Material - Resin	Polyester
Net Weight	2.240 / g
Number of Rows	2
Packaging Type	Bag
Panel Mount	No
Pitch - Mating Interface	3.00mm
Polarized to Mating Part	Yes
Stackable	No
Temperature Range - Operating	- 40 °C to + 105 °C

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database
CSA	LR19980
UL	E29179

Solder Process Data

Solderability Shelf Life Statement
Lead-freeProcess Capability	N / A

Reference - Drawing Numbers

Packaging Specification	PK - 43025 - 001 - 001
Product Specification	PS - 43045 , TS - 43045 - 001 - 001 , TS - 46235 - 001 - 001
Sales Drawing	SDA - 43025 - * * * * , SDES - 43025 - 1000

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
