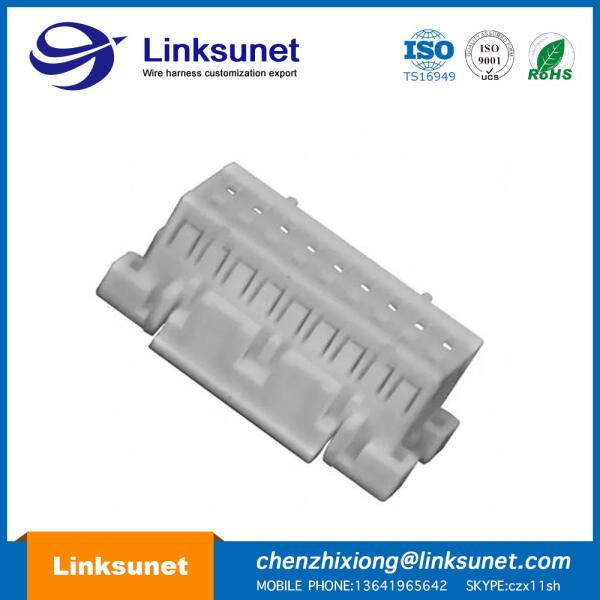

JST WT Male Female Cable Connector Dual Row Pich 2.5mm 18P XADRP - 18V

Ask Lasest Price
Brand Name :	JST
Model Number :	XADRP-18V
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, MoneyGram, Western Union
Supply Ability :	50000SET/D
Delivery Time :	3-15D

Add to Cart

Product Details
Company Profile

JST WT Male Female Cable Connector Dual Row Pich 2.5mm 18P XADRP - 18V

JST Double Row Pich 2.5mm 18P XADRP-18V / Male Female Wire Connector / WT / Goods in Stock / Material PA6

Shanghai spot stock:1000PCS

Double-row construction connector with
secure locking device.

• Secure locking device

• Solder crack preventive material

• Polarizing boss

• Mis-insertion preventive design

Specifications-

• Current rating: 3A AC, DC (AWG #20)

• Voltage rating: 250V AC, DC

• Temperature range: -250C to +850C

(including temperature rise in applying
electrical current)

• Contact resistance: Initial value/10m Q max.

After environmental testing/20m Q max.

• Insulation resistance: 1,000M Q min.

• Withstanding voltage: 1,000V AC/minute

• Applicable wire: AWG #28 to #20

• Applicable PC board thickness: 1.6mm

• Compliant with RoHS.

• Refer to "General Instruc

Circuits	Model No .	Dimensions ( mm )		Q ' ty / bag
		A	B
8	XADRP - 08V	7 . 5	14 . 7	1 , 000
10	XADRP - 10V	10 . 0	17 . 2	1 , 000
12	XADRP - 12V	12 . 5	19 . 7	1 , 000
14	XADRP - 14V	15 . 0	22 . 2	1 , 000
16	XADRP - 16V	17 . 5	24 . 7	1 , 000
18	XADRP - 18V	20 . 0	27 . 2	1 , 000
20	XADRP - 20V	22 . 5	29 . 7	500
22	XADRP - 22V	25 . 0	32 . 2	500
24	XADRP - 24V	27 . 5	34 . 7	500
26	XADRP - 26V	30 . 0	37 . 2	500
28	XADRP - 28V	32 . 5	39 . 7	500
30	XADRP - 30V	35 . 0	42 . 2	500
32	XADRP - 32V	37 . 5	44 . 7	500
34	XADRP - 34V	40 . 0	47 . 2	500
36	XADRP - 36V	42 . 5	49 . 7	250
40	XADRP - 40V	47 . 5	54 . 7	250

Model No .	Applicable wire		Insulation O . D . ( mm )	Q ' ty / reel
Model No .	mm²	AWG #	Insulation O . D . ( mm )	Q ' ty / reel
SXA - 01T - P0 . 6	0 . 22 〜 0 . 5	24 〜 20	1 . 5 〜1 . 9	8 , 000
SXA - 001T - P0 . 6	0 . 08 〜 0 . 33	28 〜 22	0 . 8 〜 1 . 9	8 , 000
SXA - 001T - P0 . 6L	0 . 13 〜 0 . 33	26 〜 22	1 . 3 〜 1 . 7	8 , 000

Documents & Media

Datasheets	XAD Series Datasheet
Online Catalog	XAD Series

Product Attributes	Select All
Categories	Connectors , Interconnects
Categories	Rectangular Connectors - Housings
Manufacturer	JST Sales America Inc .
Series	XAD
Packaging	Bulk
Part Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	18
Pitch	0 . 098 " ( 2 . 50mm )
Number of Rows	2
Row Spacing	0 . 098 " ( 2 . 50mm )
Mounting Type	Free Hanging ( In - Line )
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Note	Contacts Not Included

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
