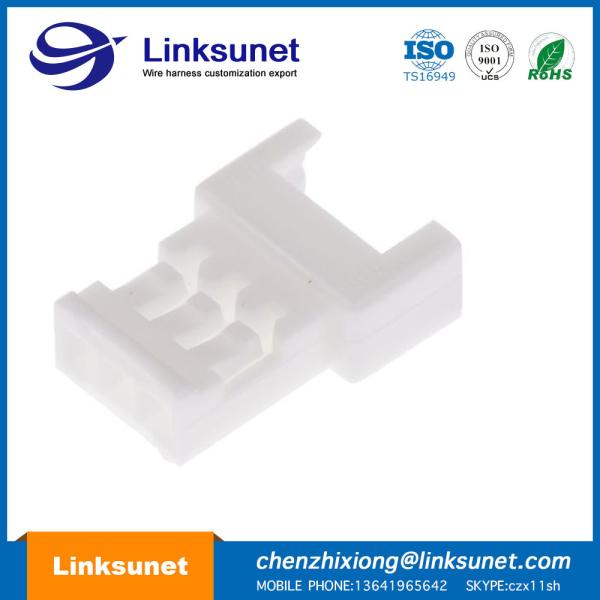

PVC 3P 1.25MM PICH Auto Electrical Wiring Harness UL Standard Single Row

Ask Lasest Price
Brand Name :	Molex
Model Number :	51047-0300+50125-8000
Certification :	UL/CE / ISO / TS16949 / IPC-620D
Price :	Negotiable
Payment Terms :	T/T,PAYPAL,ALIPAY
Supply Ability :	5000SET/D
Delivery Time :	3-15D

Add to Cart

Product Details
Company Profile

PVC 3P 1.25MM PICH Auto Electrical Wiring Harness UL Standard Single Row

3P 1 . 25MM PICH Automotive wire harness Single row Connector Add UL standard Single cable / Material PVC

	PLUG HSG		JACK HSG
1	51021 - 0200	2P , UL94 - V0	51047 - 0200
2	51021 - 0300	3P , UL94 - V0	51047 - 0300
3	51021 - 0400	4P , UL94 - V0	51047 - 0400
4	51021 - 0500	5P , UL94 - V0	51047 - 0500
5	51021 - 0600	6P , UL94 - V0	51047 - 0600
6	51021 - 0700	7P , UL94 - V0	51047 - 0700
7	51021 - 0800	8P , UL94 - V0	51047 - 0800
8	51021 - 0900	9P , UL94 - V0	51047 - 0900
9	51021 - 1000	10P , UL94 - V0	51047 - 1000
10	51021 - 1100	11P , UL94 - V0	51047 - 1100
11	51021 - 1200	12P , UL94 - V0	51047 - 1200
12	51021 - 1300	13P , UL94 - V0	51047 - 1300
13	51021 - 1400	14P , UL94 - V0	51047 - 1400
14	51021 - 1500	15P , UL94 - V0	51047 - 1500
15	50058 - 8000		50125 - 8000

Status	Active
Category	Crimp Housings
Series	51047
Application	Signal, Wire-to-Wire
Current Derating Order No	987651-3691
Overview	PicBlade^TM Connector System
Product Name	PicoBlade™
UPC	800753630420

Physical

Circuits ( maximum )	2 - 15
Color - Resin	Natural
Gender	Plug
Glow-Wire Compliant	No
Lock to Mating Part	Yes
Material - Resin	Polyester
Net Weight	68.000/mg
Number of Rows	1
Packaging Type	Bag
Panel Mount	No
Pitch - Mating Interface	1 . 25mm
Stackable	No
Temperature Range - Operating	- 40 °C to + 85 °C

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number . Click here to visit the UL Database
UL	E29179

Reference - Drawing Numbers

Product Specification	PS - 51021 - 009 - 001
Sales Drawing	SD - 51047 -* * 00

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
