1.5 Series Engine Swap Harness 282104 - 1 TYCO AMP TE 2P Male Female Sealed Pich 6.0

Ask Lasest Price
Brand Name :	TYCO/TE/AMP
Model Number :	282104-1
Certification :	UL/CAS/ROHS/RECHA/ISO9001/TS16949/IPC/WHMA-A-620
Price :	Negotiable
Payment Terms :	Western Union, MoneyGram
Supply Ability :	10000PCS/D
Delivery Time :	5-8d

Add to Cart

Product Details
Company Profile

1.5 Series Engine Swap Harness 282104 - 1 TYCO AMP TE 2P Male Female Sealed Pich 6.0

Automotive 1565377 - 1 Engine Wiring Harness and 1565380-1 TYCO AMP TE 28P Male and Female extension Wire

SuperSeal 1.5 Series

0.236" (6.00mm) Pitch Free Hanging Connector, Plug and Receptacle Housings

TE Connectivity AMP Connectors

AMP has developed the AMP SuperSeal 1.5 Series connectors family to meet the constantly increasing needs and requirements in safety and reliability of the electrical connection field. These connectors fulfill all the requirements prescribed by the various automotive and industrial standards.

Product Type Features

Connector Style Housing for female terminals
Connector System Wire-to-Board, Wire-to-Device, Wire-to-Wire
Sealable Yes
Hybrid Connector No
Primary Locking Feature Integrated in Housing
Strain Relief No

Configuration Features

Number of Positions 1-6
Number of Rows 1

Electrical Characteristics

Nominal Voltage Architecture (V) 12, 24
Operating Voltage (VDC) 24

Body Features

Color Black
Cable Exit Angle 180°
Body Material PA GF

Contact Features

Mating Tab Width 1.5 mm [ .059 in ]

Mechanical Attachment

Mounting Feature No
Terminal Position Assurance Yes
Polarized Yes

Housing Features

Centerline (Pitch) 6 mm [ .236 in ]

Dimensions

Width 9.3 mm [ .366 in ]
Height 32.2 mm [ 1.268 in ]
Length 40.9 mm [ 1.61 in ]

Usage Conditions

Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Circuit Application Signal

Industry Standards

Degree of Protection IP67

Packaging Features

Packaging Method Bag
Packaging Quantity 400

Other

Connector Position Assurance Capable No
Serviceable Yes

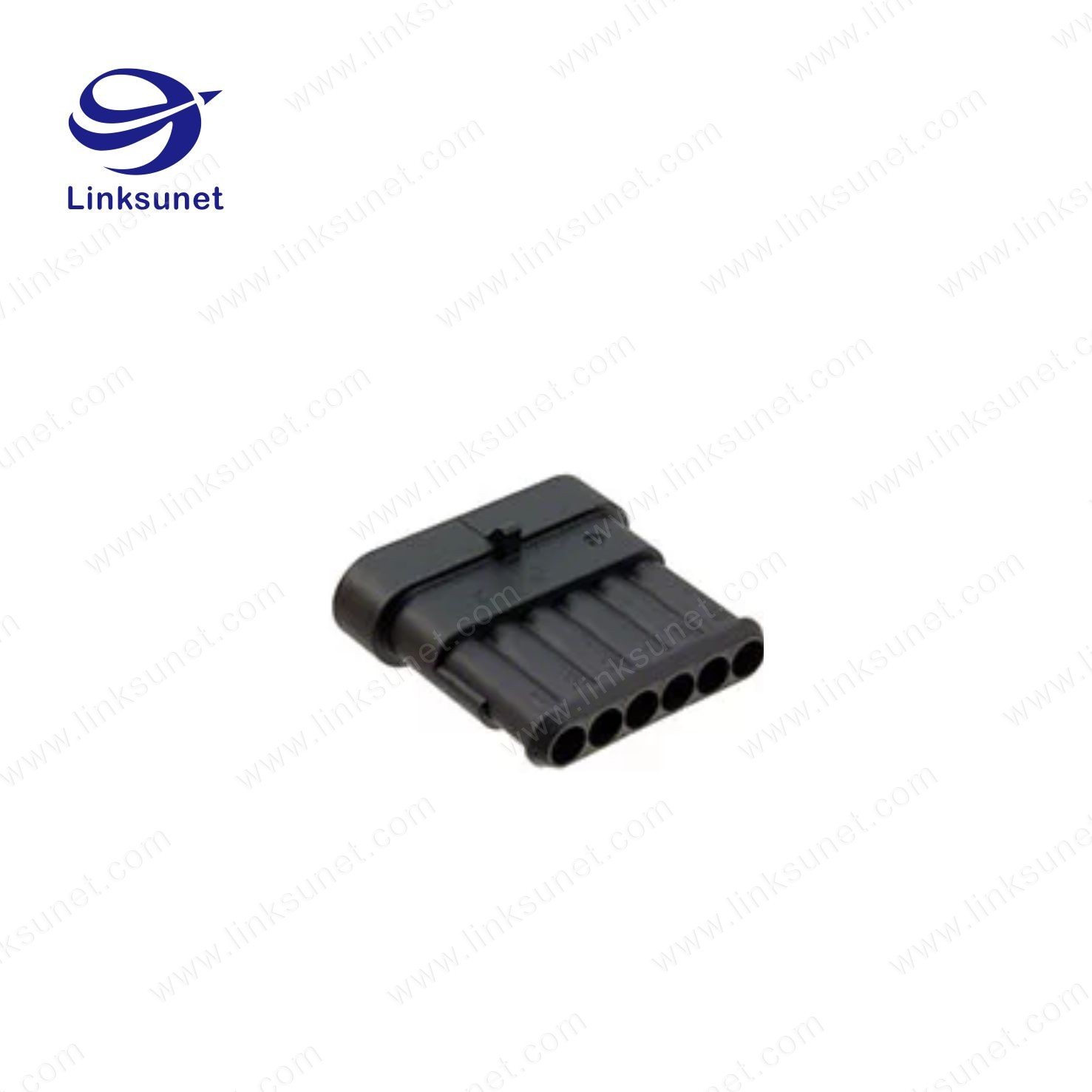

282090 - 1	CONN PLUG 6POS 1 . 5 SERIES BLACK	Plug	Female Socket	6PIN	0.236 " (6.00mm )
282089 - 1	CONN PLUG 5POS 1 . 5 SERIES BLACK	Plug	Female Socket	5PIN	0.236 " (6.00mm )
282080 - 1	CONN PLUG 2POS 1 . 5 SERIES BLACK	Plug	Female Socket	2PIN	0.236 " (6.00mm )
282087 - 1	CONN PLUG 3POS 1 . 5 SERIES BLACK	Plug	Female Socket	3PIN	0.236 " (6.00mm )
282080 - 3	CONN PLUG 2POS 1 . 5 SERIES GREEN	Plug	Female Socket	2PIN	0.236 " (6.00mm )
282088 - 1	CONN PLUG 4POS 1 . 5 SERIES BLACK	Plug	Female Socket	4PIN	0.236 " (6.00mm )
282103 - 1	CONN TAB HOUSING 1POS BLACK	Receptacle	Tab	1PIN	-

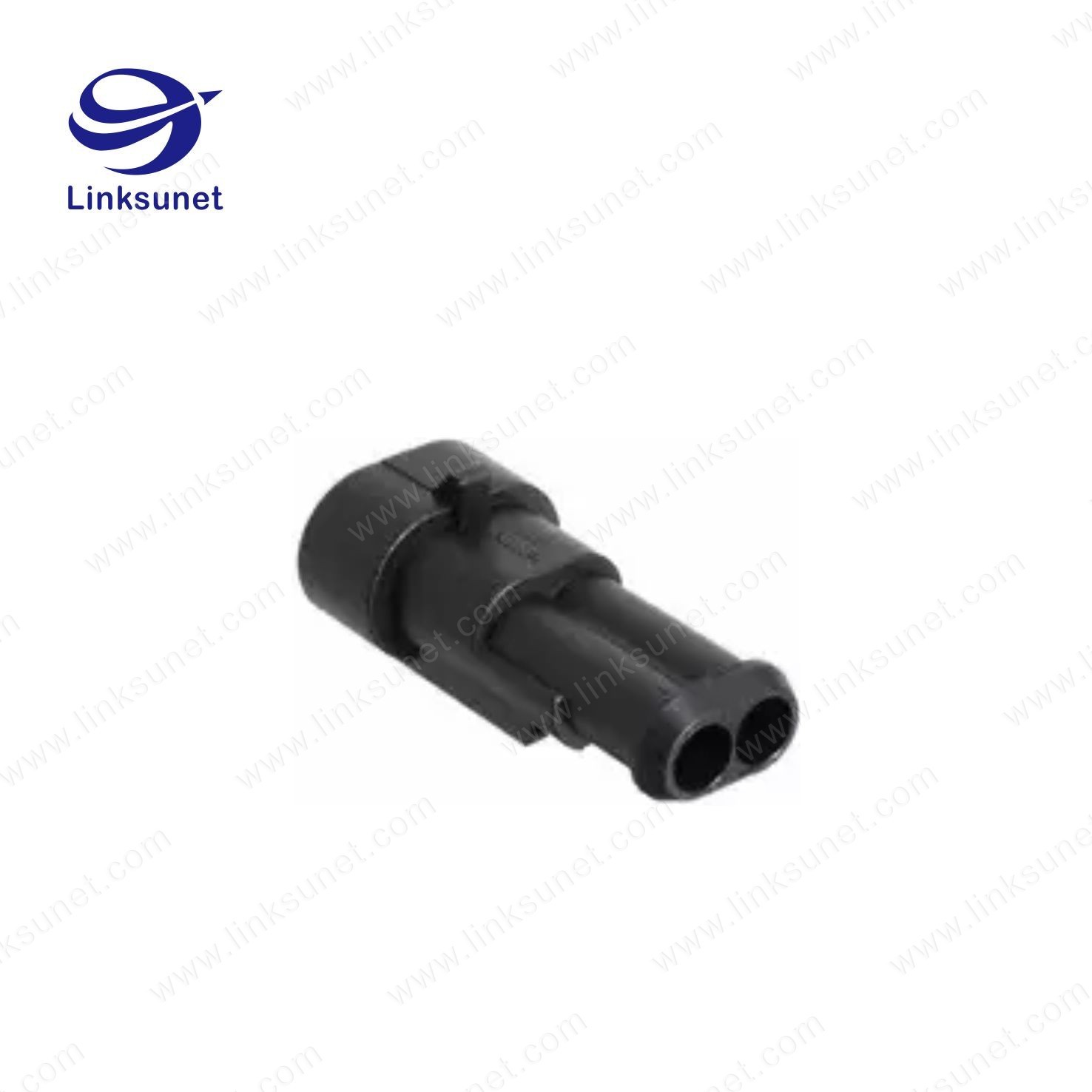

282104 - 1	CONN TAB HOUSING 2POS BLACK	Receptacle	Tab	2PIN	0.236 " (6.00mm )
282105 - 1	CONN TAB HOUSING 3POS BLACK	Receptacle	Tab	3PIN	0.236 " (6.00mm )
282106 - 1	CONN TAB HOUSING 4POS BLACK	Receptacle	Tab	4PIN	0.236 " (6.00mm )
282107 - 1	CONN TAB HOUSING 5POS BLACK	Receptacle	Tab	5PIN	0.236 " (6.00mm )
282108 - 1	CONN TAB HOUSING 6POS BLACK	Receptacle	Tab	6PIN	0.236 " (6.00mm )

1.5 Series Engine Swap Harness 282104 - 1 TYCO AMP TE 2P Male Female Sealed Pich 6.0

UL standard internal wiring
UL1007 Hook-up Wire
UL1015 Hook-up Wire
UL1061 Hook-up Wire
UL1185 Single Conductor Shielded Cable
UL1316 Reinforced Hook-up Wire
UL1330 FEP Insulated Wire
UL1430 Crosslinked PVC Insulated Wire
UL1452 Reinforced Hook-up Wire
UL1533 Single Conductor Shielded Cable
UL1569 Hook-up Wire
UL1571 Hook-up Wire
UL1672 Reinforced Hook-up Wire
UL10064 FEP Insulated Wire
UL10086 High Temperature Resistant Hook-up Wire
UL10097 Crosslinked PVC Insulated Wire
UL10272 Hook-up Wire
UL10308 High Temperature Resistant Hook-up Wire
UL2464 Multi-Conductor Shielded Cable
UL2468 Flat Ribbon Wire
UL2509 Multi-Conductor Cable
UL2517 Multi-Conductor Shielded Cable
UL2547 Multi-Conductor Shielded Cable
UL2552 Multi-Conductor Shielded Cable
UL2576 Multi-Conductor Cable
UL2586 Multi-Conductor Cable
UL2651 Flat Ribbon Wire
UL2725 Multi-Conductor Shielded Cable
UL2835 Multi-Conductor Shielded Cable
UL2854 Multi-Conductor Shielded Cable
UL2919 Low Voltage Multi-Conductor Shielded Cable
UL20276 Multi-Conductor Shielded Cable
UL20379 Multi-Conductor Shielded Cable
UL21149 Multi-Conductor Shielded Cable
UL21520 Multi-Conductor Cable
UL3443 Hook-up Wire

UL halogen-free wire
UL11027 Hook-up Wire
UL10983 Single Conductor Shielded Cable
UL10982 Hook-up Wire
UL10981 Hook-up Wire
UL10984 Reinforced Hook-up Wire
UL10986 Single Conductor Shielded Cable
UL10987 Hook-up Wire
UL11025 Hook-up Wire
UL11028 Hook-up Wire
UL11029 Hook-up Wire
UL11045 Reinforced Hook-up Wire
UL11047 Reinforced Hook-up Wire
UL21451 Double Shielded Cable
UL21452 Double Shielded Cable
UL21455 Multi-Conductor Shielded Cable
UL21456 Multi-Conductor Shielded Cable
UL21457 Multi-Conductor Shielded Cable
UL21458 Flat Ribbon Wire
UL21461 Multi-Conductor Shielded Cable
UL21474 Multi-Conductor Shielded Cable
UL21476 Multi-Conductor Shielded Cable
UL21515 Flat Ribbon Wire
UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

Industrial electric wire

Flexible Single Core Cable
Flexible Multi-core Torsion Cable
Flexible Multi-core Shielded/Non-Shielded Control Cable

VDE standard wire

LifY Single Core,extra fine wires with highest flexibility
LIYY-Command Cable (Style 2464/300 V, (80°C)
LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

Automotive wire

FLRY-A Automotive Wire Series
FLRY-B Automotive Wire Series
FLRYW Automotive Wire Series

TWP Automotive Wire Series
TXL Automotive Wire Series
GXL Automotive Wire Series
AVS Automotive Wire Series
AVSS Automotive Wire Series

Packaging & Shipping

Export cartons
(406mm*306mm*250mm)
